Our Latest Products and Technologies products are updated online at our new website http://www.analyticalgroup.net/ and hence can be better viewed in our new web site http://www.analyticalgroup.net/ . However, With limitations of this old website we provide you below as much info as possible. Analytical Technologies has following Major Categories of Products as listed below. 1. Chromatography - Liquid Chromatography - HPLC, NanoLC, Ion Chromatography, Flash Chromatography, Gel Permeation Chromatography( GPC ) ,.HSCCC( High Speed Counter Current Chromatography),. Gas Chromatography -GC, 2. Spectroscopy- UV-Vis Spectrophotometers, IR/FTIR( Fourier Transform Infrared ) , Raman, Atomic Absorption Spectrometers ( AAS),. Optical Emission,.,.3. Biomedical ( Clinical Diagnostics )- Bio-Chemistry Analyzers, Fully Automated Clinical Chemistry Analyzers, Hematology Analyzers( Blood Cell Counters) , Urine Analyzers, Electrolyte Analyzers, Coagulation Analyzers.,Kindey Stone Analyzers, HBA1c Analyzers, Amino Acid Analyzers 4. Bio-Technologies - PCR/Gradient PCR / RT-PCR, ELISA/Micro plate Readers/ Washers, Chemiluminescence Immune Assay ( CLIA ) Analyzers 5. Material Science- Metal Analyzers like OES, Particle Size Analyzers,.6. General Laboratory products like Water Purification Systems,. Freeze Driers ( Lyophilizes) Ultrasonic Cleaners,. etc,.

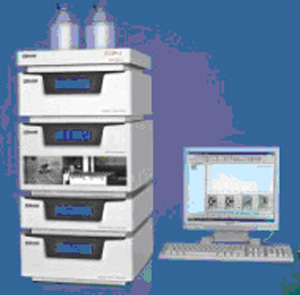

Analytical Technologies IntelligentLC HPLC Systems

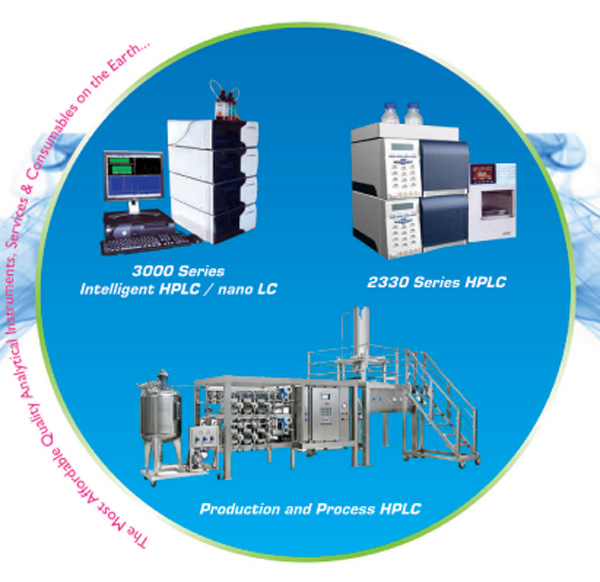

With decades of expertise in HPLC technologies, we have pleasure in having our latest 2230 HPLC Systems with FDA Compliance and built-in Self diagnostic features. 2230 Series carries many user friendly features over our former Model ALC 2610A. We offer complete range of HPLC Systems of various configurations of the customer's interest. Our range includes
Isocratic , High Pressure Binary , Ternary, Quaternary, analytical, Semi Prep, Prep and Process Scale Systems. Both Integrated and Modular Systems can be supplied with various options of detectors like UV, UV-Visible, fluorescence, Refractive Index, Conductivity, Electrochemical and Photo Diode Array,.etc

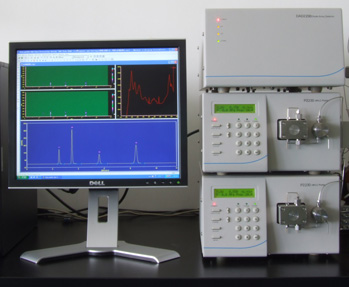

HPLC with DAD ( Diode Array Detector ) / PDA ( Photo Diode Array) :
A full-closed optical system and quartz light fiber based transmission technique was used.
High spectral resolution and detect sensitivity were obtained.
Combined with the powerful data system PDA( Photo Diode Array ) Data System Workstation), the instrument can provide a lot of information including chromatogram, spectra of components, three dimension information and peak purity results.
The Evaporative Light scattering Detector Analytical 3000 is an universal detector for HPLC. It is used to analyze components which do not have UV absorption, cannot be separated with an isocratic solvent and must use a gradient elution, which cannot be used with a refractive index detector. Only mobile phases without any buffers should be used.
In contrast to other evaporative light scattering detectors all parts of the the 3000 detectors which come in contact with the sample are made of PTFE or glass. By this this parts are inert to common solvents and easy to clean. One more advantage of glass parts is the fact that contamination can be located easily.
The nebulization takes place in the glass nebulization chamber. From here the aerosol is guided into the evaporation chamber which is made of glass, too.
The solvent evaporated and only small sample particles reach the detection chamber. Here this particles pass a beam of bright light. By this the light is scatterd in all directions. The scattered light is detected by a photomultiplier in an angel of 120°. The signal is amplified and exported as the detector signal.
All parts which get in contact with the sample can be un-mounted and cleaned easily.

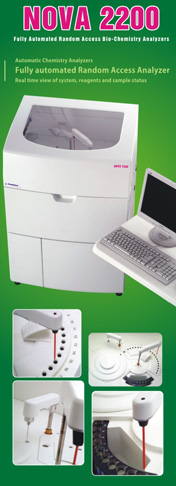

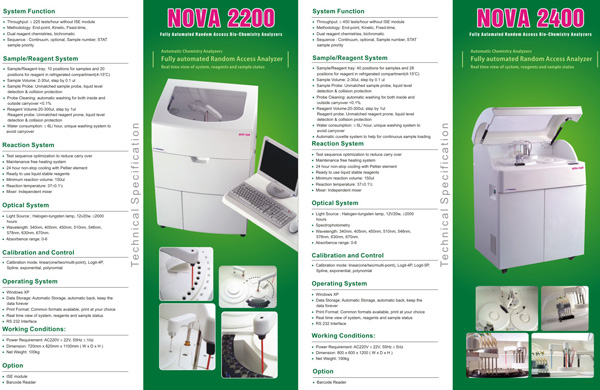

We offer 4 different types of NOVA 2000 Series Fully Automated Random Access Clinical Chemistry Analyzers ( Auto Analyzers) 1. NOVA 2020- with 150 Samples /hour throughput 2. NOVA 2200 - 225 Samples/hour 3. NOVA 2200 Plus - 225 Samples /hour with on board cuvvette washing ( Laundry ) 4. NOVA 2400 -400 Samples/hour with all the features,.

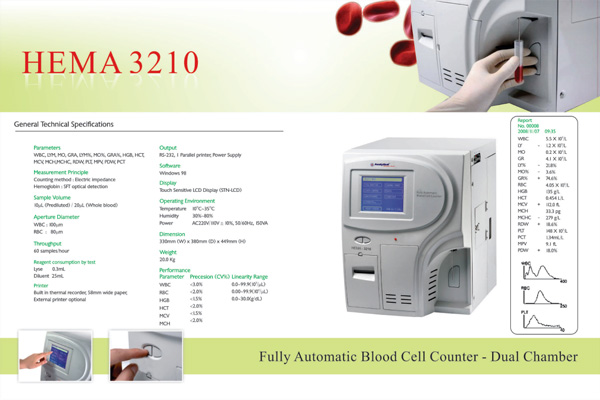

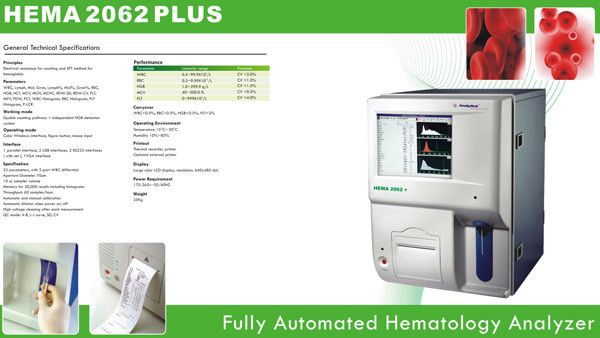

We offer both HEMA Series 3 Part and 5 Part Differential Blood Cell Counters. In the 3 Part Segment, we offer Single Chamber and Dual Chamber Cell Counters with 23 Parameters, 3 Histograms,.

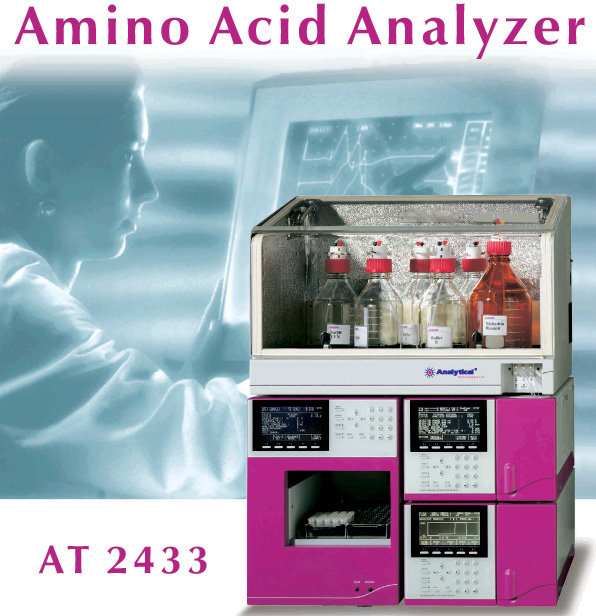

Amino Acid Analyzer :
The Amino Acid Analyzer is a new generation of instruments for the determination of Amino Acids according to the well known reliable Ninhydrin post-column derivatisation
This Amino Acid Analyzer is especially designed for the routine analysis of physiological fluids (serum and urine) and hydrolysate. It can be either controlled completely with the help of a computer or works as stand-alone system. With old fashioned step-elution systems, 4 and/or 5 buffer solutions were needed. Now, due to the optimized buffer system, only 2 buffers for hydrolysates and 3 for the physiological samples are necessary. The buffer can be adjusted individually to the samples by varying the mixture of the buffer. The system S 433 includes an autosampler with cooled sample storage and partial loop fill technique without sample loss as well as a 2 plunger buffer pump, a dual beam photometer, a cloumn oven with active cooling capabilities, a ninhydrine pump, a four channel degasser and a refrigerated reagent organizer with integrated inert gas application system
A complete line of CPC (Centrifugal Partition Chromatography) instrumentation:
INDUSTRIAL CPC Batch & TMB, 50 litters volume Operating in batch mode, like a traditional HPLC system as well as in continue purification, like a traditional SMB. For both modes, its throughput capability is equivalent to a traditional 500 litters system, dividing by a large factor the purification cost (up to 15).
We Offer Systems with flow rates ranging from 300mL/min , 500mL/min, 1, 2, 4,6,8 & 10Ltrs/min. We also help in Scaling up from Preperative to PILOT and Production Purification Systems.
We offer Pre-Packed PREP Columns, DAC ( Dynamic Axial Compression) Columns, Column Packers , Bulk Media ( Sperical Si ) for Columns Packing.

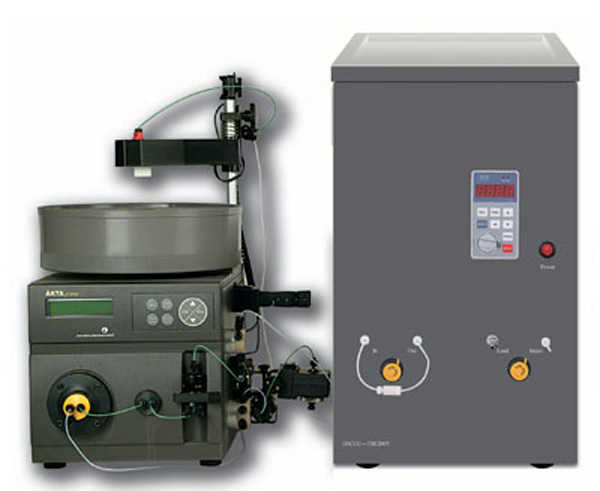

HSCCC ( High Speed Counter Current Chromatography)
for purification of Natural products like Phyto Chemicals, proteins, etc,and polysaccharides, polypeptides and proteins, etc,.Analytical, Semi Preparative, and Preparative Systems are available for various applications and for various scale of operations,. For more details please ask for detailed proposal.
GC 2971 Gas Chromatograph
GC2971 is the latest model of gas chromatograph developed by Analytical Technologies, with EPC ( Electronic Pressure Control ) , AFC /APC -Automatic Flow /Pressure Control ,. compact design and outstanding performance.
• 10-step temperature program, with maximum heating rate up to 39 °C per minute.
• Three injection ports and three detectors can be mounted at the same time.
• Large LCD screen displays all operating conditions and detection signals.
• Built-in data acquisition board to control 2900 gas chromatography and perform data analysis by PC through RS232 interface.
• Gas pressure is controlled and regulated by the latest advanced technology to ensure accuracy down to 0.1psi.
• Choice of injection port - Packed column, split/ split less capillary and wide bore capillary column adaptor.
• Choice of detector - FID, TCD, ECD, NPD, FPD.
• D -7900 PC software is a standard with the main unit. The software can perform instrument control, data acquisition, chromatogram manipulation, data analysis and calculation as well as custom reporting.
• Injections can be automated by optional liquid auto sampler.

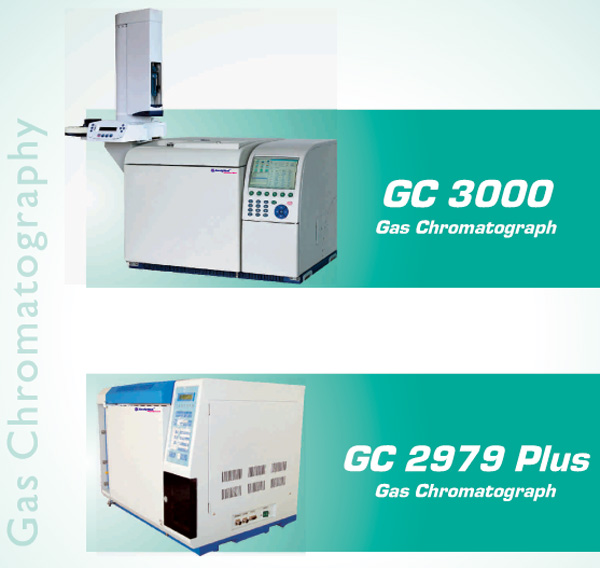

AIS 2000 COMPACT GC( Gas Chromatography Systems :
Complete range of GC's with FID, TCD, FPD , manual, automated, PTV tc,. All our GC's are electronic Pressure Controlled Systems, this will make the systems most efficient and user friendly. We supply Nitrogen and hydrogen Generators to minimize the working cost .
Curie- Point - Paralysis for GC's

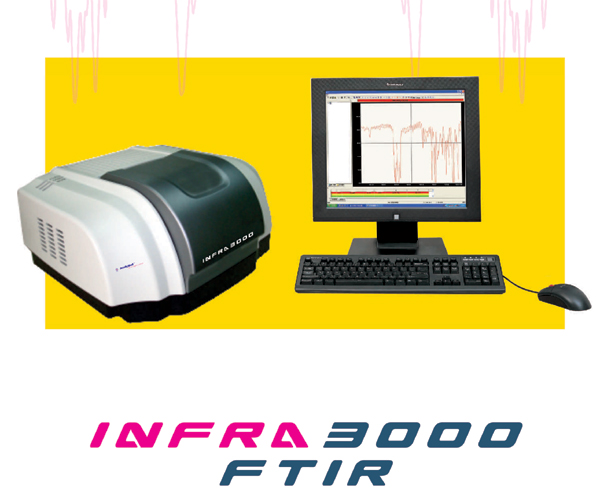

2500Series FT-IR Spectrometers
Fourier Transform Infrared Spectrometers is the High Resolution and low cost
Accessories like HATR, Reluctance, Gas Cell, Liquid Cell etc,.can be supplied
NIR-2800 is controlled by compatible computer and provided with NIR spectrometer operation software. It features easy operation and full function. It adopts crossed Czerny-Turner structure for its monochromator optical system, which has less coma, lower astigmatism and stray light; CCD or PDA array as the detector to fulfill various measurement task.
Spectral Range: 800nm~1100nm; Resolution: 2nm
2500 IR ( Infra Red) Spectrophotometers
The System uses unique, high-speed, High resolution monochromatic to generate data with equivalant quality to FTIR.
2000 Series Spectrophotometers :

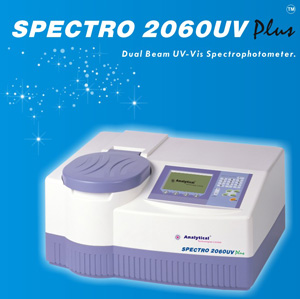

2060U Plus is Dual Beam UV Vis Spectrophotometer &
2080 UV Vis Dual Beam Spectrophotometer
The 2060 Plus is an affordable Dual Beam UV Visible Spectrophotometer with band width of less than 1nm. The instruments offers a wavelength range of 190 - 1100nm. The 2060 has a small footprint and has pre-programmed PCMA cards for quantitative analysis, scanning, kinetics and DNA. The T60 can be interfaced to a PC via UV Spec Software. The system is supplied with an 8 cell motorised cell changer as standard. The 2060 boasts a performance on a par with larger and more expensive machines. Everything from simple concentration measurements up to sophisticated analyses.

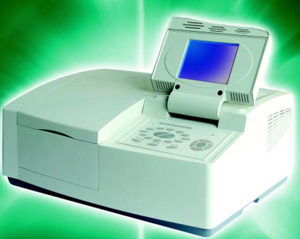

The 2070 has a large 'fold away' LCD display unit which allows fos complete display of Spectra. The system has a large easy to use positive touch key pad and the instrument can be used a complete standalone unit.

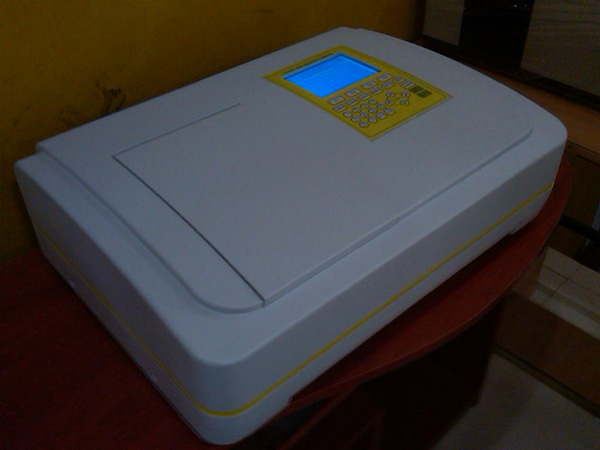

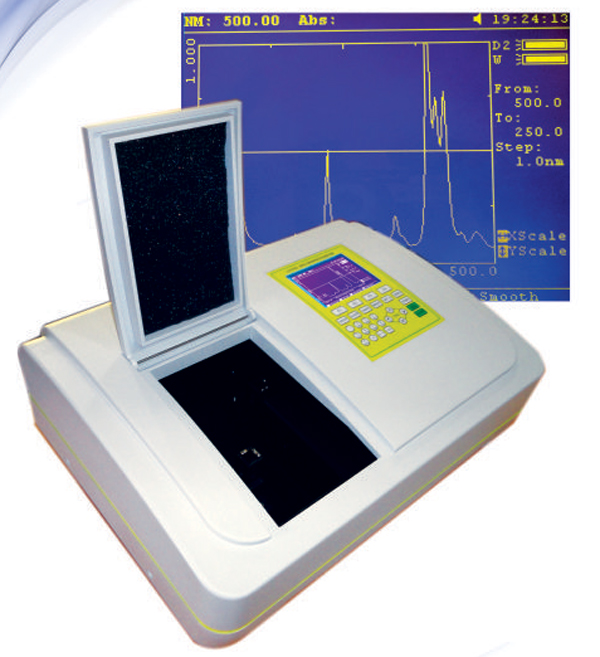

2080Plus Double Beam UV Vis Spectrophotometer
The 2080Plus UV Spectrophotometer is a dual beam instrument with a variable band-pass of 0.5, 1.0, 2.0 and 5.0nm. The wavelength range is 190 - 1100nm.The 2070 has a large 'fold away' LCD display unit which allows fos complete display of Spectra. The system has a large easy to use positive touch key pad and the instrument can be used a complete standalone unit.

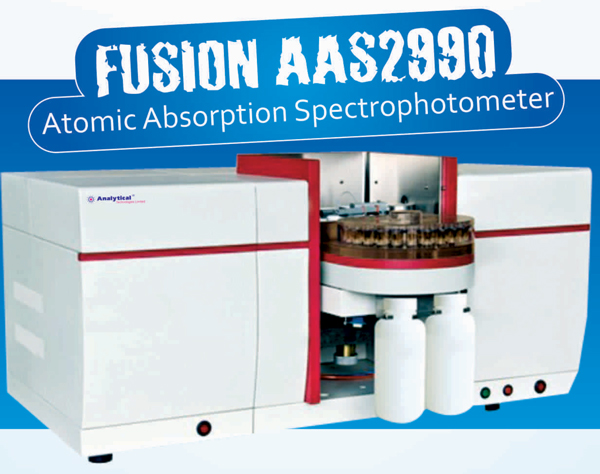

ATOMIC ABSORPTION SPECTROPHOTOMETER
The 2990 Atomic Absorption Spectrophotometer is available in the following configuration:
Flame Only
Graphite Furnace
Combined Flame and Graphite Furnace with the option for up to nine heating ramps.
The system is fully controlled from a PC with AAWin Software. The main features of the system are:
The integration of flame burner and graphite furnace in one compact unit enables automatic interchanging between the flame mode and furnace mode using few simple keystrokes.
Eight lamp turret for automatic positioning of each hollow cathode lamp.
Automatic fuel gas (C2H2) flow rate adjustment to optimise combustion in element analysis.
Automatic adjustment of burner height for optimised analysis conditions.
Automatic switchover of spectral bandwidth (5 choices).
Automatic PMT and lamp current adjustment, automatic AA and BG energy balance
Optical Emission Spectrometer :
Ｆｅａｔｕｒｅｓ ★Reasonable design and perfect performance；
★Rapid analysis, perfect repeatability and stability； ★High integrated data collection and control system, high automatic degree； ★Used for many kinds of matrix analysis: Fe, Co, Ni, Ti, Cu, Al, Pb, Mg, Zn, Sn etc. ★High repeatability & stability excitation source is adopted. Excitation frequency can change in 150 ~ 600 Hz range. Select it based on analysis material user analyzes, to reach best analysis effect. ★Computer software is user-friendly and easy to be operated； ★Database is built in. User can transfer data through the internet, convenient and quick. ★Shake-protection performance is strong, and there is no need to make shake-protection base. ★Local constant-temperature technique is adopted to ensure the normal operation, minimizing requirement to environmental conditions. ★Operations and maintenance are easy and convenient, and maintenance cost is low.
Ｓｐｅｃｉｆｉｃａｔｉｏｎｓ Spark Source Power supply: AC 220v ±1% 50 Hz Input power: 1.0 kVA Charge capacitance: Pre-burn 7 µf, Expose 1.5 µf Discharge Inductance: Pre-burn 35 µh; Expose 70μh Peak current: Pre-burn 100A; Expose 35A Peak voltage: 300V Ignite circuit: Amplitude of pulse +15 KV Auxiliary gap 5mm Discharging frequency: 300 Hz/150Hz or 400Hz/200Hz Optical Unit Spectrum range: 175∼450 nm Optical channels: up to 36 channels Concaved grating: Focus length 750 nm Groove density 2400 lines /mm Ruled area 30 mm × 50 mm Blaze wavelength 300 nm Linear dispersion 0.55nm/mm Width of entrance slit: 20 µm Width of exit slit: 50 µm, 75 μm Constant temperature: 30±0.1 ℃ Gas supply pressure: 0.01~0.02MPa
Except to add the sample, testing person only need to operate the computer .One needn't to operate directly and lessen work intensity and improve the work efficiency. The control processes is friendly with people ,is clear at a glance, use conveniently, function strong and convenient to operate and study. Has two modes to operate: manual work mode and automatic motion mode .

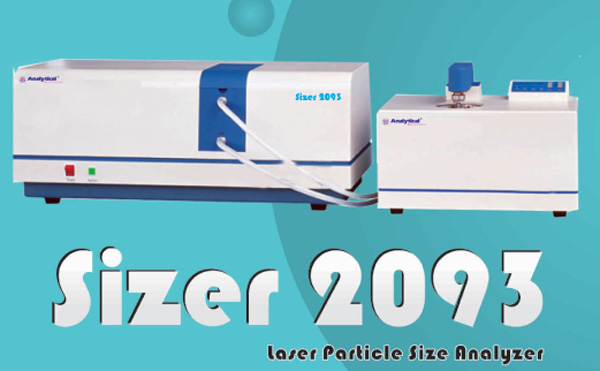

Widely Distributed Laser Particle Size Analyzer
widely distributed laser particle size analyzer analysis of widely distributed. powdery material ranging form 0.05 to 700 micron. This instrument suits for factory laboratory, colleges quality control,product checking,scientific researching and novel product developing 2005 consists of two components, main machine and the computer .Though standard serial interface bilateral communication between main machine and computer is put into practice.
desk high-performance laser particle size analyzer fot size distribution analysis of widely distributed. powdery material ranging form 0.1 to 700 micron. This instrument suits for factory laboratory, colleges quality control, product checking,scientific researching and novel product developing 2116 consists of two components, main machine and the computer .Though standard serial interface bilateral communication between main machine and computer is put into practice.
Laser Online Gas Analyzers
Based on our own proprietary Diode Laser Absorption Spectroscopy (DLAS) technology, LGA-2000 Laser Gas Analyzer is capable of continuous on-the-spot gas concentration measurement and monitoring. It demonstrates the characteristics of in situ detection in lieu of sampling, high measurement precision, short response time, easy installation and maintenance, and etc.
This Amino Acid Analyzer is especially designed for the routine analysis of physiological fluids (serum and urine) and hydrolysate. It can be either controlled completely with the help of a computer or works as stand-alone system. With old fashioned step-elution systems, 4 and/or 5 buffer solutions were needed. Now, due to the optimized buffer system, only 2 buffers for hydrolysates and 3 for the physiological samples are necessary. The buffer can be adjusted individually to the samples by varying the mixture of the buffer. The system S 433 includes an autosampler with cooled sample storage and partial loop fill technique without sample loss as well as a 2 plunger buffer pump, a dual beam photometer, a cloumn oven with active cooling capabilities, a ninhydrine pump, a four channel degasser and a refrigerated reagent organizer with integrated inert gas application system
